WINGO 3524KCE | Motor for the automation of swing gates with leaf lengths up to 3.5 m each, 24 Vdc.
The Nice WINGO 3524 Basic Double Kit is a reliable automation solution for swing gates with leaf lengths up to 3.5 m and weight up to 200 kg per leaf. With 24 V technology, durable construction, and advanced features, it is an ideal choice for residential and professional applications, offering excellent performance and safety.

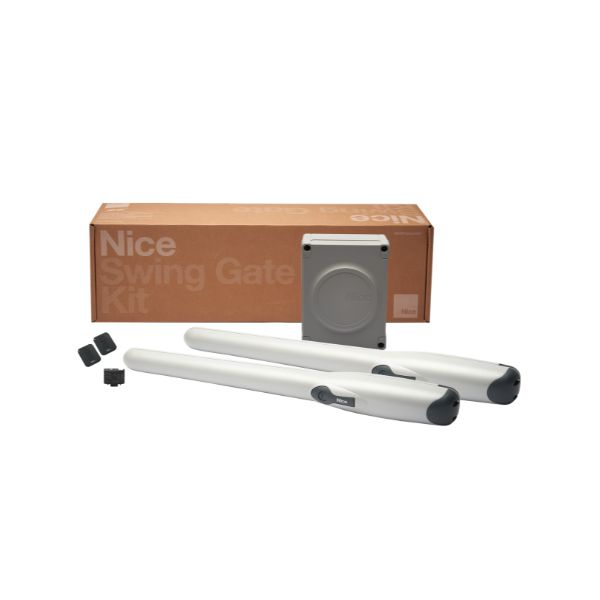

Kit includes:
- 2 WG3524 motors for swing gates.
- 1 MC424L control unit with built-in radio receiver.
- 2 two-channel remote controls.
Description
Motor features:
- Suitable for gates up to 3.5 m and 200 kg per leaf: Safely handles medium-size swing gates.
- Safe and quiet operation: Patented internal component layout and reduced moving parts ensure low-noise performance.
- Automatic locking: Gates remain securely locked without the need for an additional lock.
- Obstacle detection: The amperometric system detects obstacles and reverses the gate movement to prevent damage.
- Smooth start and stop: Protects the gate structure and ensures gentle operation.
- Easy installation: Top cable connection and mechanical opening stops included.
- Manual release: Emergency key system allows manual operation during power failure.
Technical specifications
Technical specifications:
- Power supply: 24 VDC
- Power consumption: 85 W
- Speed: 0.012 m/s
- Maximum thrust: 1500 N
- Operating temperature: −20°C to +50°C
- Protection rating: IP44
- Gate leaf length: Up to 3.5 m per leaf
- Gate leaf weight: Up to 200 kg per leaf
- Motor dimensions: 920 × 98 × 95 mm
- Motor weight: 6 kg
Usage advantages
- Safety: Automatic locking and obstacle detection ensure safe operation.
- Durable construction: Made from high-quality materials for long service life.
- Easy maintenance: Quick access to internal parts for simplified servicing.
- Flexibility: Compatible with the PS124 backup battery system.
Product maintenance
To maintain a consistent level of safety and ensure the maximum service life of the entire automation system, regular maintenance is required.
