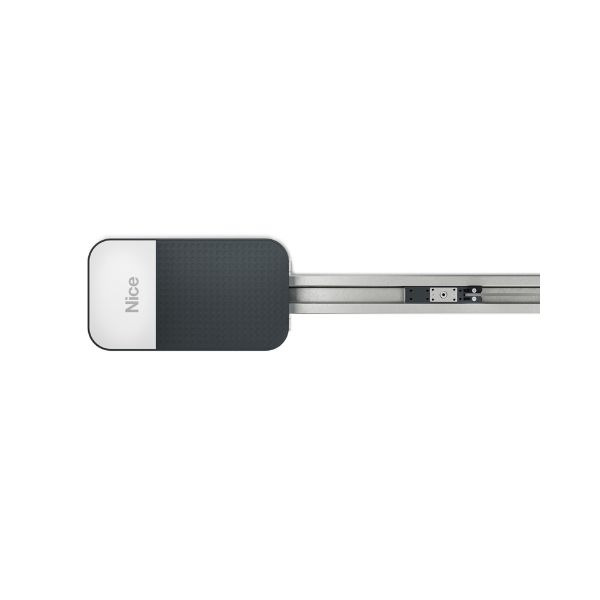

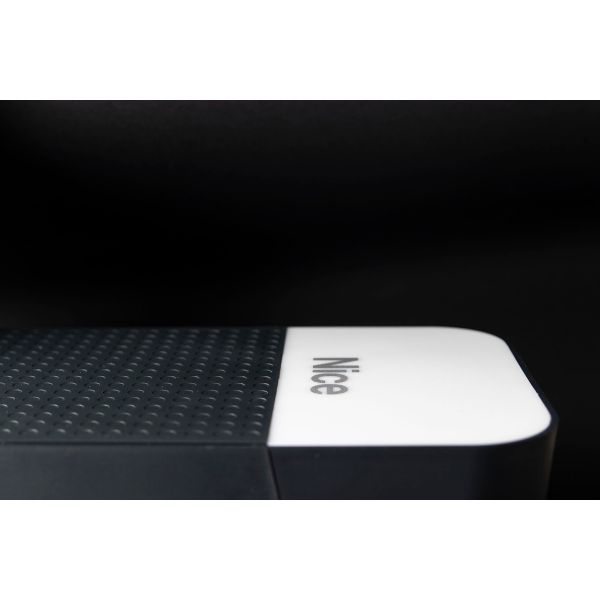

SPIDO 600 | Motor for the automation of overhead garage doors up to 9.6 m², with rail 2 × 1.6 m or one-piece 3.2 m, up to 600 kg.
Description
Fast installation anywhere.
Reliable:
Self-diagnosis system that immediately detects and signals any possible motor malfunction.
Safe:
Motor with electronic limit switches and very low 24 Vdc voltage. Obstacle detection thanks to controlled movement.
Quiet operation.
Practical manual release with cord in case of power failure.
Built-in control unit with integrated radio receiver.
Technical Specifications:
Technical specifications:
- Maximum force: 600N
- Maximum speed: 12 meters / minute
- Door surface: up to 9.6 m²
- Power supply: 230 V
- Maximum power consumption: 350 W
- Maximum number of cycles / day: 40
- Protection rating: IP40
Product maintenance
To maintain a consistent level of safety and ensure the maximum service life of the entire automation system, regular maintenance is required.
